Manual vs. semi-automatic vs. automatic L-bar sealers
Compare manual, semi-automatic, and automatic L-bar sealers: who closes the seal head, how fast each runs, what it costs, and when to move up.
The short answer
- Manual: the operator loads the product, pulls the seal head down, and takes the package out. Uline rates its H-2378 at about 6 to 8 packs per minute for sealing alone. From $859.
- Semi-automatic: the operator loads the product. Some models hold the head down on a timer. Some close the head under power. Some have a takeaway conveyor. Check each feature on the model you quote. About 8 to 12 packs per minute. About $3,000 to $11,000 for the sealer alone.
- Automatic: conveyors feed the product, and a photo eye sets the bag length. The machine seals and cuts with no operator stroke. Up to about 35 to 60 packs per minute. About $30,000 and up.
Speeds are maker ratings for ideal conditions. Your output depends on product size, film, and how fast products are loaded.
Real output is lower than the rating. The sealer does not seal for the whole shift. Loading, film roll changes and splices, product changeovers, and rejected packs all cost time or output. The tunnel also has to keep up. Conflex says the tunnel “should be thoroughly considered for product capacity and efficiency when choosing a shrink system.”
To estimate real output, take the minutes the sealer actually cycles. Multiply by its rated speed. Subtract the packs you reject. Then check that the tunnel can run that many of your packages.
Jump to manual, semi-automatic, or automatic sealers. Once you pick a workflow, use the cross-brand comparison.
Manual L-bar sealers
A manual sealer is a table with a film cradle and a hinged L-shaped seal head. The operator slides the product into folded film. Then the operator pulls the head down and holds it while the seal forms. Last, the operator lifts the head and takes out the bag.
On impulse sealers the wire heats only while the head is down. That takes about one second on the Uline H-2378, per its manual. It takes 1 to 4 seconds on the AIE 1313L. Hot knife sealers such as Eastey’s keep the knife at a set heat with a temperature controller. See impulse vs. constant-heat seals for wear parts and film. Shrinking is a separate step with a heat gun or tunnel.
“Manual” does not always mean a small bench machine. Some suppliers use the word for larger machines that an operator loads, with timed hold-down and a powered takeaway conveyor. Ask which steps the operator does. Compare those larger machines with the semi-automatic sealers below.
Manual models
Prices and specs checked October 1, 2026. Dimensions are in inches.
| Model | Seal area | Rating and power | Price |
|---|---|---|---|
| Uline H-2378 | 18 × 18 | “6-8 packages per minute”, not counting heat-gun shrinking. 1,000 W. | $1,208 before freight and tax |
| AIE 1313L | 13 × 13 | Seal time 1 to 4 seconds. 115 V. | $859 on sale from $955 |
Film and a heat source cost extra. The H-2378 manual gives that model’s product clearance, film thickness limits, and a 110 V supply spec. Use it for that model. Don’t judge package size from the bar size alone.
Starter setups compared
A tabletop L-bar can cut down on repeated sealing motions compared with an I-bar kit. But the separate shrink step may still set your finished output.
| Setup | What to check | What to time in a trial |
|---|---|---|
| I-bar kit | Bar length, cutting method, included film and gun | Moving the film between seals |
| Tabletop L-bar with heat gun | Seal area, film fit, bench and cooling space | Shrinking each package by hand |
| Tabletop L-bar with a separate tunnel | How packs move to the tunnel, tunnel clearance, power | Loading, sealing, and moving each package |
| Hooded chamber | Usable chamber size and full cycle | Waiting for the combined seal and shrink cycle |
These compare workflows. They are not fixed output limits. For priced kits, see starter setups by budget. Count good finished packages over a normal batch before you choose.
Check the bench, film, and product
Measure the full working footprint with the film roll in place. Leave room to open the arm, load products, handle film, and set finished packs aside. Confirm bench strength and how the machine gets unloaded with the seller. “Tabletop” does not mean one person can lift it.
Test your smallest and largest products with the film you plan to use. Ask for a demo of a full batch, not one good seal. Watch how far the operator reaches and the order of each step.
Budget a full manual setup
Add up the sealer, film roll, heat gun or tunnel, work surface, freight, first wear parts, and training. The L-bar price section lists tabletop and industrial machines apart.
Good fit: small batches, many different products, startup and e-commerce volume, or a backup line.
Limits: every package needs the operator’s full attention. Seal quality depends on how the operator presses and holds the head.
When to move up: if work piles up behind the heat gun, look at a tunnel first. An automatic sealer won’t fix that. If loading and closing the head are the slow steps, compare semi-automatic sealers and measure the labor saved. Use cost per package to turn that into a buying choice.
Semi-automatic L-bar sealers
A semi-automatic machine keeps the operator loading products. It powers part of the sealing or transfer cycle. On a typical machine, the operator lowers the head. Then electromagnets clamp it for a set dwell time, which is how long the head stays closed to seal. Some models also release the head on their own and have a takeaway conveyor. The conveyor moves the pack out, often straight into a tunnel. The operator can load the next product while the machine seals.
Makers use the label in different ways. Heat Seal calls its HS1620 semi-automatic because of its magnetic hold-down. Eastey lists its Performance Series under manual L-sealers. But it describes the series as semi-automatic, with an automatic takeaway conveyor. Ask exactly which steps are powered.
Semi-automatic models
Prices and specs checked October 1, 2026. Dimensions are in inches. These are setups to look into, not a ranking.
| Model | Features | Power and price | Ask before you order |
|---|---|---|---|

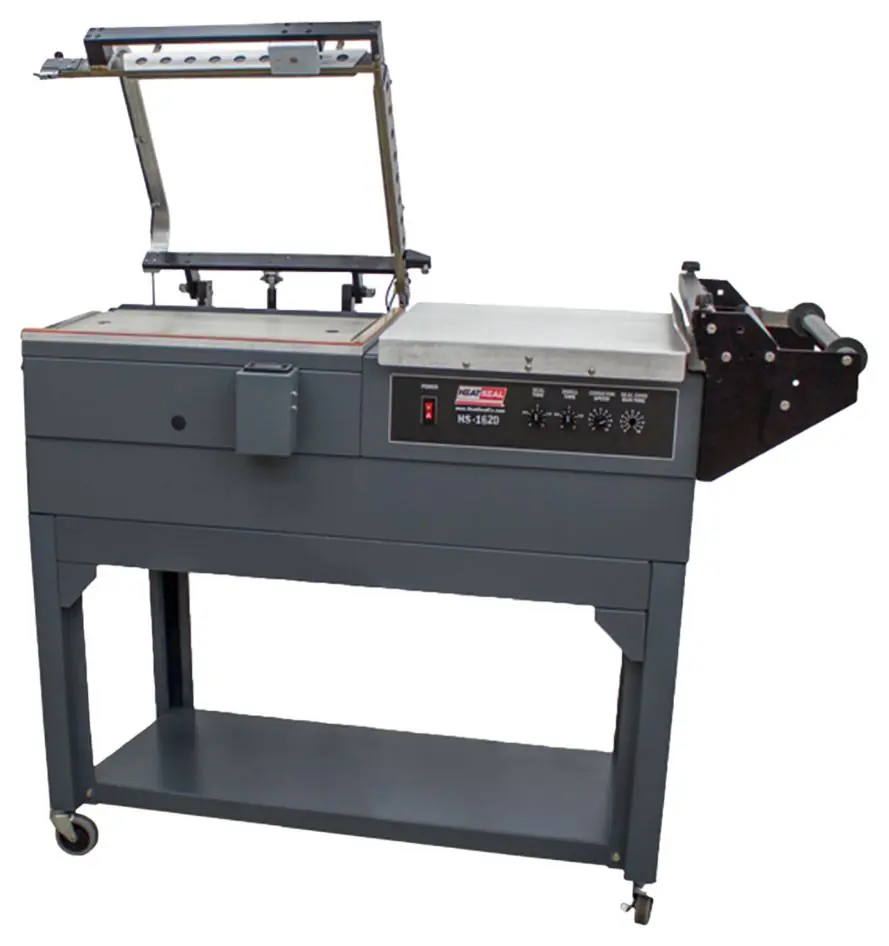

| Heat Seal HS1620 | 16 × 20 seal area, impulse wire, timed magnetic hold-down, adjustable platform | Not listed here | How does the operator move the sealed pack out? The listed features don’t show a takeaway conveyor. |
| Sealer Sales SS-1519LMC | 15 × 19 seal area, dual magnet hold-down, motor-driven discharge conveyor, stated 8 to 10 packs/min | Get a sheet for this exact model | Which version? The page also sells versions without the conveyor or magnets. |
| Eastey EM1622 Performance Series | 16 in. side bar × 22 in. front bar. The seller calls the seal a hot wire. Eastey calls it a “hot knife seal system.” | 110 V 20 A, $7,800 | Name the model, seal type, conveyor, and closing options on the quote. |
| Heat Seal HSE-100 combo | 16 × 20 sealer with built-in tunnel | 115 V 20 A, $7,999 | |
| Clamco 250C combo | 17 × 23, up to 12 packs/min. Powered head closing, takeaway conveyor, and tunnel. | 220 V 50 A, $11,925 | Will its full cycle meet your rate with your product and film? |
The SS-Series page recommends POF film and does not recommend PVC. Its spec table also shows a different model name than the page heading. Get a sheet for your exact model before you trust its electrical or roll-size values. Check supplier papers even when model names look alike.
Match the feature to the job
Magnetic hold-down controls how long the head stays closed. It may not lower the arm. Powered closing takes over that step. A takeaway conveyor moves the sealed bag out. Someone may still need to prep and load each product.
Write out the cycle with the supplier: load product, place film, close the head, hold, release, move out, shrink, and collect. Mark each step manual or powered. This makes quotes for different machines easier to compare.
Trial the operator’s workload
Run a normal batch. Include normal product refills and film changes. Time good finished packages, not just seal cycles. Note whether the operator can prep the next item while the last pack moves out. Note whether a second person has to collect packages.
Repeat the trial with your least stable bundle and your largest product. For frequent short runs, include changeover time. See how to shrink wrap for setup steps. Longer setups between products can cancel out a faster cycle.
Pick the heat source and budget
Compare a standalone sealer and matched shrink tunnel against an all-in-one combo. Check the power for the full setup. Check the transfer height and how the package is supported between machines.
The L-bar sealer price table lists standalone sealers that an operator loads apart from combos. Add install and service costs. Then compare automation payback using labor and output you measured.
Good fit: steady daily volume, one operator, and a consistent finished package.
When to move up: if conveyor feeding would remove a bottleneck you have measured, look at automatic sealers.
Automatic L-bar sealers
An automatic L-bar sealer has an infeed conveyor that carries products into the film. Photo eyes detect each product and set the bag length. The seal head cycles on its own. A scrap winder collects the trim.
“Fully automatic” describes the machine cycle. It still needs labor. The operator keeps the infeed supplied, changes film rolls, and clears faults. A full shrink line also needs a matched tunnel and a way to feed and collect products.
Automatic models
Specs and prices checked October 1, 2026. Dimensions are in inches. Seal area is not the largest product footprint. Product height and film clearance reduce the usable size. Rates are maker claims under set conditions, not output we measured.
| Model | Seal area; max height | Max film width | Power and air | Rated speed | Price |
|---|---|---|---|---|---|
| Shanklin A26A | 15 × 21; 5.5 high | Not listed here | 230 V 15 A; 0.5 CFM of air at 60 psi | Up to 35 packs/min | Not listed here |
| Clamco 6750EL | 20 × 25; 8 high | 23.5, centerfold | 220 V single-phase 18 A; all-electric, no air | Up to 60 packs/min, depending on package size and film | $40,215 at MyBinding |
| Eastey VSA1825 | 18 × 25; 7 high | 24 | Air at 60 to 80 psi. Get the electrical rating and air use with the quote. | About 35 to 40 cycles/min, depending on product | Not listed here |

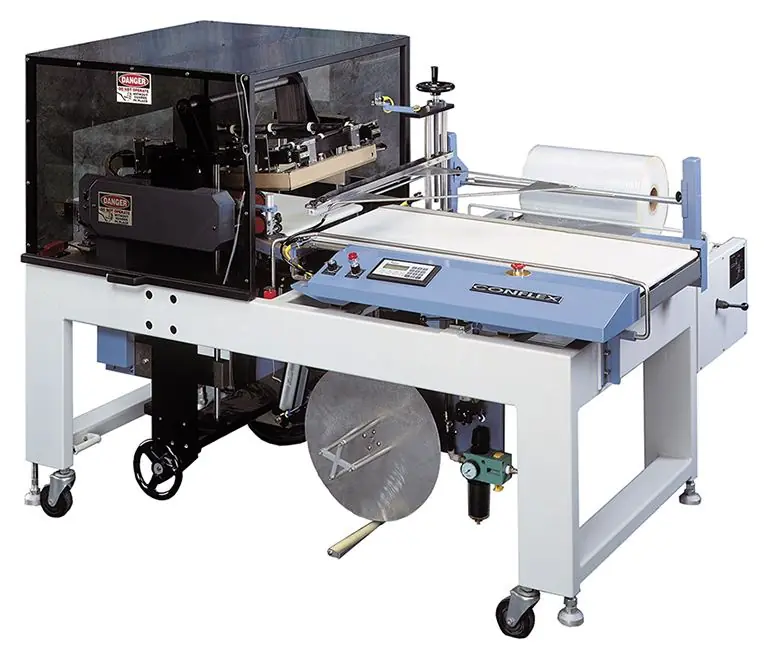

| Conflex E-250A | 19 wide × 24 long; 8 high with center seal | 27 | 220 V single-phase 20 A; 1 CFM of air at 80 psi minimum | Film speed up to 100 ft/min. This is not packs/min. | Not listed here |
| SMIPack FP6000 | Not listed here | Not listed here | All-electric, no compressed air | Not listed here | $35,162. The same seller lists an FP6000E at $30,091. |
Don’t rank these machines by the biggest number in the speed column. You can’t turn a conveyor or film speed into packs per minute without the package spacing and the seal cycle. Ask each supplier to run the same products and film.
Heat Seal’s HDX-2000 sheet says its rated speed depends on product and film size. It also says you can’t use all the largest product sizes at once. Don’t assume other automatic models can either. Ask for each model’s product size limits. Ask for a speed rating on your product.
Check the infeed first
Write down how products arrive. They may come spaced apart, touching, stacked, or in loose groups. Include your smallest item, lightest item, and least stable bundle in the trial. Ask if the quoted setup can detect clear or odd-shaped products. Ask if it supports products over conveyor gaps and keeps stacks lined up.
Decide who supplies the infeed conveyor. Decide who links its stop and start signals to your upstream equipment. If the sealer waits on products loaded by hand, the old bottleneck may stay in place.
Test changeovers
Have the supplier change from your smallest package to your largest and back. Time the film change, guide setting, seal-height setting, and recipe pick. Time the wait for the first good finished package too. Record startup scrap apart from running rejects. Saved recipes don’t remove hand adjustments. You still need to check the first package. See how to shrink wrap for the setup details your operators need.
Budget the full line
The cost guide lists sealer prices apart from tunnel and install costs. Ask for an itemized quote. It should list the sealer, infeed, matched tunnel, discharge, options, utilities, freight, startup, training, and first spare parts. A photo of a tunnel next to a sealer doesn’t prove the tunnel is included.
Count good finished packages after shrinking over a timed run with normal stops. Compare that rate with what you need. Then work out cost per package and payback.
Good fit: high volume of a few products, a line tied to upstream filling or labeling, or labor that costs more than the machine.
When another machine fits better: frequent short runs may suit a semi-automatic sealer if changeovers take up much of the shift. Products too long for the seal frame need a side sealer. See beyond L-bar below.
Beyond L-bar: side sealers

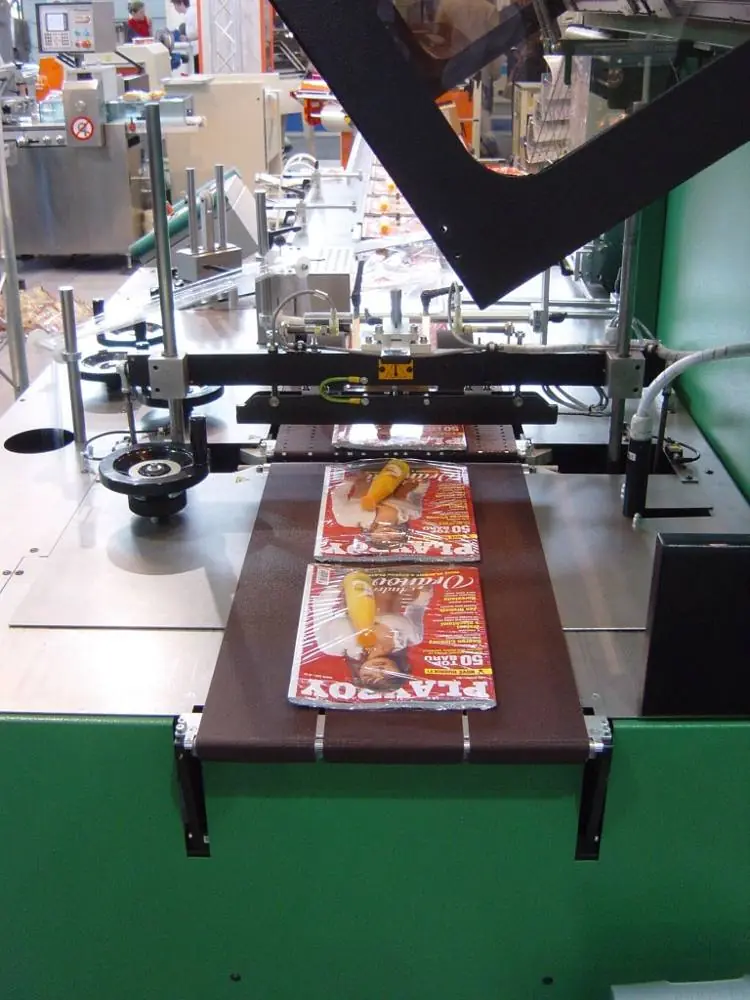

An L-bar sealer can’t seal a package longer than its seal bar. Some products are too long. Some lines need more than an automatic L-bar can run. Then the next step is a side sealer. It seals nonstop along the side and cuts between packages. Conflex calls the side sealer “the next step up in production from the automatic L bar sealer.”
Conflex rates its continuous-motion AdvantEDGE Rotary at “up to 200 packages per minute.” Intermittent side sealers, which stop and start, are slower. The TL-INT-20 is rated at over 35 products per minute. That is in the automatic L-bar range. See L-bar sealer vs. side sealer for a full comparison.
How to decide
- Count packages per shift. Divide by the minutes you actually run. That gives the packs per minute you need. Use the speed ranges to pick candidates.
- Count your products. Many sizes with frequent changeovers favor manual and semi-automatic machines. A few products in long runs favor automatic.
- Price the labor. A manual sealer ties up one operator full time. Semi-automatic features may cut handling. An automatic machine still needs product supply, film changes, and fault recovery. Measure total paid labor across the line.
- Check your building. Automatic machines and tunnels often need 220 V. Some need compressed air.
- Test with your product. Ask the supplier to run your products and film, including a changeover. Count good packs over a timed run.
Then use the buyer checklist to write up your needs and get quotes you can compare. Use the cost guide to compare those quotes.
