A homemade heat shrink tunnel is an open-ended metal chamber, a heat source that blows hot air into it, and a slow belt that carries packages through. Most home builds use a heat gun as the heat source. Builders report that it works. It lacks the temperature control, even airflow, guarding, and safety listing of a commercial tunnel, and someone has to watch it the whole time it runs.
This guide does not give wiring or build plans. It covers what people build, what a commercial tunnel adds, the safety limits heat gun makers publish, and what the lower-risk options cost.
What people actually build
Search results for this topic are mostly videos of commercial tunnels. When we checked Google’s first page for “how to make a heat shrink tunnel” on October 10, 2026, it showed commercial tunnels from Get Packed and Hilltop Products, not build instructions.
Home builds do exist. The clearest example we found is a 34-second video from 2012 called Homemade Heat Tunnel. Its description reads: “This was built using a Treadmill, some pipe and a heat gun, Works great. All for less than $50.00. That’s a $2200 savings over store bought.” We have not tested that build or any other.
That build shows the three parts every tunnel needs:
| Part | In a home build | In a small commercial tunnel |
|---|---|---|
| Heat source | A heat gun fixed in place | A heating element with a thermostat and a blower (Uline H-4018 manual) |

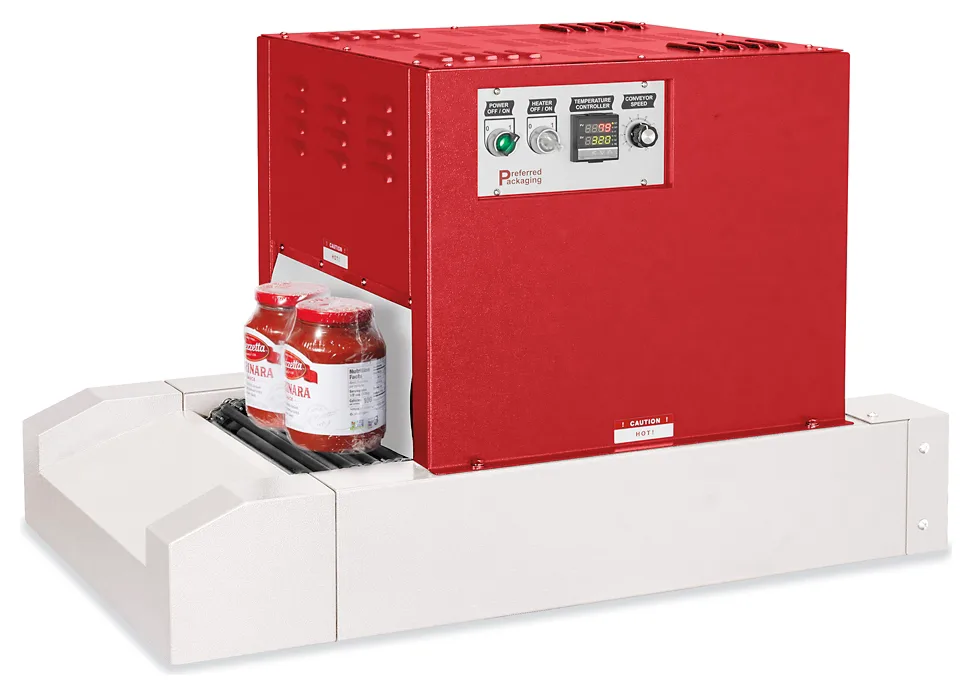

| Chamber | A metal pipe or box, open at both ends | A steel chamber with silicone rubber curtains at each end (Uline H-951) |
| Conveyor | A treadmill belt or other slow belt | A speed-controlled roller conveyor with silicone-covered rollers (Uline H-951) |
What a commercial tunnel adds
The gap between the two is control. These are published features of two small Uline tunnels, set against a fixed heat gun.
| Feature | Small commercial tunnel | Heat gun build |
|---|---|---|
| Temperature | The Uline H-951 has a 100 to 350°F range and a “Digital temperature display.” | Heat guns “can produce 1000°F (540°C) or more of flameless heat at the nozzle” (Power Tool Institute). Nothing holds the air at a set point. |
| Airflow | The H-951 has a “Fully recirculating air chamber with 4-directional air flow.” | One stream from one direction. US Packaging & Wrapping says a heat gun’s heat is “isolated in one area.” |
| Time in the heat | A speed control sets how long each package stays in the chamber. | Depends on the belt the builder finds |
| Motor protection | The H-951 lists “Thermal overload protection on all motors.” | Depends on the donor machine. It was not made to run next to a heat source. |
| Openings | Reinforced silicone rubber curtains cover each end of the H-951. | Open ends |
| Power | The H-951 draws 2,200 W. The H-4018 manual says “20-amp service is required”. | A heat gun plus a belt motor on a household circuit |
Each film has its own shrink temperature. Uline lists about 250°F for its PVC and 300°F for its polyolefin, and its tunnel manual suggests starting at 275°F and 325°F. A tunnel is set to that range. A heat gun runs far above it, so the result depends on distance and timing.
In a US Packaging & Wrapping comparison video, the description says “The shrink tunnel maintains a constant temp. with a continuous belt in-feed.” It says the gun “must be in constant motion to prevent burn holes.” A fixed gun can’t move, so the belt has to do that job.
Even commercial tunnels are sensitive. The H-4018 manual says “Keep shrink tunnel away from drafty areas.” Uline says light items “may be knocked over when passing through the front or back of tunnel” on the H-951. Expect a home build to be harder to keep steady than either.
Safety limits
A fixed heat gun in a box is used in ways heat gun makers warn about. These are published warnings.
- Don’t leave it running alone. The Power Tool Institute says “Do not leave the heat gun unattended while running or cooling down.” A tunnel that runs for a whole batch needs someone watching it for the whole batch.
- Don’t restrict the airflow. The same guide says “Restricting air flow may cause the heat gun to overheat.” It says to keep the intake vents clear.
- A stopped package can catch fire. The guide says “Pausing or lingering in one spot may ignite or melt the workpiece or the material behind it.” If the belt stops, the package sits in the heat.
- Keep combustible material away. Wagner’s HT1000 manual says its gun “produces extremely high temperatures (as high as 1450° F).” It says not to use it near combustible materials such as paper. Cardboard, wood, and plastic have no place in or near the chamber.
- Use only approved attachments. The Power Tool Institute says to use only nozzles and accessories “specifically recommended by the heat gun manufacturer.”
- Keep an extinguisher close. The guide says “Keep a fire extinguisher nearby.”
- Ventilate for PVC. PVC film can give off fumes when heated. See fumes and ventilation.
If you have employees. OSHA’s electrical standard says equipment “shall be acceptable only if approved, as defined in § 1910.399.” That definition covers equipment that is “listed, or labeled, or otherwise determined to be safe by a nationally recognized testing laboratory.” A home-built tunnel has no listing. Ask your insurer and local authority before you put one in a workplace.
Do not build or modify heating circuits yourself unless you are qualified to. Have an electrician check the circuit, the load, and the grounding of anything you plug in.
What it costs to skip the build
The 2012 builder compared a $50 build with a $2,200 tunnel. Compare it with these options too. Prices are from seller websites on the dates shown.
| Option | Price | Output | Source |
|---|---|---|---|
| Handheld heat gun | $45 to $91 for 1,200 W packaging guns | Uline rates I-bar kits with a heat gun at 1 to 2 packages per minute | Heat guns, page updated October 2, 2026 |
| Hooded chamber machine | $3,199 to $6,995 | 3 to 6 packages per minute. It seals and shrinks in one cycle. | Cost guide, October 1, 2026 |
| New 110 V conveyor tunnel | $2,539 for the US Packaging & Wrapping 1606-20. $3,000 for the Uline H-951. | Set by belt speed and chamber length | Shrink tunnel prices, October 1, 2026 |
| Used tunnel or combo | A 2020 Uline H-951 was listed at $3,990. A Clamco sealer and tunnel combo was listed at $2,500. Both had sold. | Depends on condition | Used machine prices, September 29, 2026 |
| Band tunnel for bottles | $3,488 for a hot air band tunnel with conveyor | For neck bands and sleeves, not film packages | Small band tunnels, October 7, 2026 |
A used tunnel is not always cheaper. That used H-951 was listed for more than a new one.
If you shrink by hand and want to go faster, check where the time goes first. If sealing is the slow step, a tunnel won’t help. Compare an I-bar and an L-bar sealer before you spend anything on heat.
If you still build one
These are checks, not instructions.
- Read the heat gun manual. If it forbids fixed or unattended use, pick a different heat source or buy a tunnel.
- Use metal for everything near the heat. That includes the chamber, its supports, and anything the hot air reaches.
- Keep the gun’s air intake outside the chamber and clear.
- Measure the air where the package rides. Aim for the film’s range, not the nozzle’s. Start low and test with scrap. The Power Tool Institute says “Experiment with scrap materials and start with lowest temperature range.”
- Work out the time in the heat. Use chamber length and belt speed. The formula is in match the tunnel to the sealer.
- Plan for a stopped belt. Decide how the heat shuts off and how you clear the chamber.
- Vent the bags. A sealed bag needs small holes so air can escape as the film shrinks.
- Stay with it. Turn it off when you step away.
When to buy instead
Buy a tunnel when you wrap most days, when other people will run it, or when the product can’t take uneven heat. Start with shrink tunnels for sizing and electrical requirements. If you wrap a few packages a week, a heat gun is enough. See how to shrink wrap with a sealer and heat gun.
Common questions
Yes, people do. A home build is usually a heat gun blowing into a metal pipe or box with a slow belt running through it. Builders report that it shrinks film, but it has no temperature control, no guarding, and no safety listing. It also has to be watched the whole time it runs.
A fixed heat gun is the usual heat source in home builds. Heat gun makers warn against leaving a gun running unattended and against restricting its airflow, so check the gun's manual before you mount it. A gun heats one area. A commercial tunnel moves heated air around the whole package.
Uline lists shrink temperatures of about 250°F for its PVC film and 300°F for its polyolefin. Its tunnel manual suggests starting at 275°F for PVC and 325°F for polyolefin. A heat gun nozzle can reach 1,000°F or more, so a home build needs distance and airflow to bring the air down to the film's range.
New 110 V conveyor tunnels listed from $2,539 on October 1, 2026, and the Uline H-951 listed at $3,000. A used H-951 was listed at $3,990 on September 29, 2026, so check the new price before you buy used.
A handheld heat gun. Packaging suppliers sell 1,200 W shrink guns for $45 to $91. Uline rates its I-bar kits with a heat gun at 1 to 2 packages per minute.
